lwpp::XPanelLightHandler Class Reference

#include <light_handler.h>

Inheritance diagram for lwpp::XPanelLightHandler:

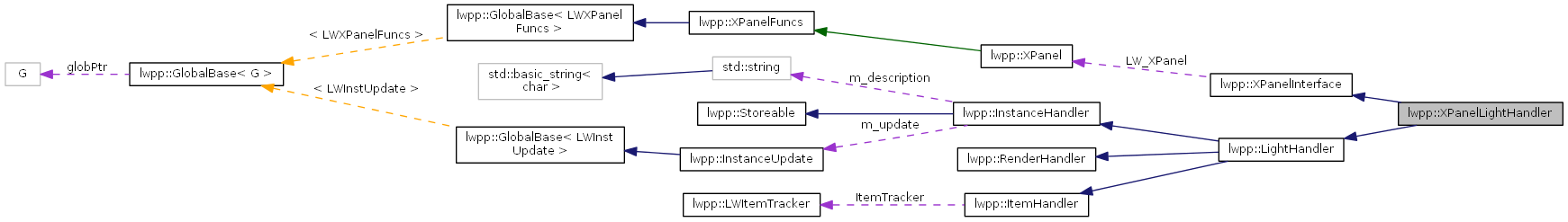

Collaboration diagram for lwpp::XPanelLightHandler:

List of all members.

Public Member Functions
virtual void	ButtonClick (unsigned int)
virtual void	ChangeID (const LWItemID *id_list)
virtual void	ChangeNotify (LWXPanelID, unsigned int, unsigned int, int)
virtual void	Cleanup ()
virtual void	ControlDraw (unsigned int, XPDrawArea &)
virtual void	ControlZoom (unsigned int, int, int, int *, int)
virtual void	CreateViewXPanel (LWXPanelControl *controls, LWXPanelDataDesc *desc, LWXPanelHint *hints=0, bool do_destroy=false)
virtual void *	DataGet (unsigned int)
	Put data into a XPanel View.
virtual LWXPRefreshCode	DataSet (unsigned int, void *)
	Retrieve data fom a XPanel View.
virtual const char *	DescLn ()
virtual int	Evaluate (const LWDVector spot, double fractime, LWIllumination illumination[], const LWLightAccess *lightaccess)=0
virtual unsigned int	Flags ()
virtual unsigned int	GetPhotons (unsigned int maxphotons, LWPhoton photons[], const LWLightAccess *lightaccess)
virtual unsigned int	GetRayIlluminations (LWDVector raystart, LWDVector raydir, double farclip, unsigned int maxrayilluminations, LWRayIllumination rayilluminations[], const LWLightAccess *lightaccess)
virtual LWError	Init (int mode)
virtual int	Interface (int version, LWInterface *local, void *serverdata)
virtual LWError	Load (const LoadState &ls)
	Load data from a LWLoadState.
virtual LWError	NewFrame (const LWFrameInfo *frameinfo, unsigned int *maxilluminations, const LWLightAccess *lightaccess)=0
virtual LWError	NewTime (LWFrame frame, LWTime time)
virtual void	PanelDestroyNotify (void)
void	PopCommand (int, int)
virtual const LWPreviewLight *	Preview ()
virtual LWError	Save (const SaveState &ss)
	Save data to a LWSaveState.
void	SetClassName (const char *n)
void	SetDescription (const char *n)
void	SetDescription (const std::string &s)
void	SetName (const char *n)
void	Update ()
void	Update (const char *cName)
virtual const LWItemID *	UseItems ()

Static Public Member Functions
static void *	CB_DataGet (LWInstance inst, unsigned int vid)
	Put data into a XPanel View.
static LWXPRefreshCode	CB_DataSet (LWInstance inst, unsigned int vid, void *value)
	Retrieve data fom a XPanel View.
static void	LWXPanelBtnClickFunc (LWXPanelID panel, int cid)
	Callback for XPanel button Clicks.
static void	LWXPanelChangeNotifyFunc (LWXPanelID panel, unsigned int cid, unsigned int vid, int event_type)
static void	LWXPanelControlDrawFunc (LWXPanelID panel, unsigned int cid, LWXPDrAreaID reg, int w, int h)
static void	LWXPanelControlZoomFunc (LWXPanelID panel, unsigned int cid, int x, int y, int *region, int clickcount)
static void	LWXPanelDestroyNotifyFunc (void *data)
static void	LWXPanelPopCmdFunc (LWXPanelID panel, int cid, int cmd)

Public Attributes
XPanel	LW_XPanel

Protected Attributes
LWItemID	Context
LWFrame	currentFrame
LWTime	currentTime
lwpp::LWItemTracker	ItemTracker
const char *	m_className
std::string	m_description
const char *	m_pluginName
InstanceUpdate	m_update
int	renderMode

---

Detailed Description

Class for Procedural Textures with an XPanel

---

Member Function Documentation

virtual void lwpp::XPanelInterface::ButtonClick ( unsigned  int )

inlinevirtualinherited

void * lwpp::XPanelInterface::CB_DataGet ( LWInstance  inst, unsigned int  vid  )

staticinherited

Put data into a XPanel View.

LWXPRefreshCode lwpp::XPanelInterface::CB_DataSet ( LWInstance  inst, unsigned int  vid, void *  value  )

staticinherited

Retrieve data fom a XPanel View.

virtual void lwpp::ItemHandler::ChangeID ( const LWItemID *  id_list )

inlinevirtualinherited

virtual void lwpp::XPanelInterface::ChangeNotify ( LWXPanelID  , unsigned int  , unsigned int  , int    )

inlinevirtualinherited

Reimplemented in lwpp::XPanelNodeHandler.

virtual void lwpp::RenderHandler::Cleanup ( )

inlinevirtualinherited

virtual void lwpp::XPanelInterface::ControlDraw ( unsigned  int, XPDrawArea &    )

inlinevirtualinherited

virtual void lwpp::XPanelInterface::ControlZoom ( unsigned  int, int  , int  , int *  , int    )

inlinevirtualinherited

void lwpp::XPanelInterface::CreateViewXPanel ( LWXPanelControl *  controls, LWXPanelDataDesc *  desc, LWXPanelHint *  hints = 0, bool  do_destroy = false  )

virtualinherited

virtual void* lwpp::XPanelInterface::DataGet ( unsigned int  )

inlinevirtualinherited

Put data into a XPanel View.

virtual LWXPRefreshCode lwpp::XPanelInterface::DataSet ( unsigned int  , void *    )

inlinevirtualinherited

Retrieve data fom a XPanel View.

virtual const char* lwpp::InstanceHandler::DescLn ( )

inlinevirtualinherited

virtual int lwpp::LightHandler::Evaluate ( const LWDVector  spot, double  fractime, LWIllumination  illumination[], const LWLightAccess *  lightaccess  )

pure virtualinherited

virtual unsigned int lwpp::LightHandler::Flags ( void  )

inlinevirtualinherited

virtual unsigned int lwpp::LightHandler::GetPhotons ( unsigned int  maxphotons, LWPhoton  photons[], const LWLightAccess *  lightaccess  )

inlinevirtualinherited

virtual unsigned int lwpp::LightHandler::GetRayIlluminations ( LWDVector  raystart, LWDVector  raydir, double  farclip, unsigned int  maxrayilluminations, LWRayIllumination  rayilluminations[], const LWLightAccess *  lightaccess  )

inlinevirtualinherited

virtual LWError lwpp::RenderHandler::Init ( int  mode )

inlinevirtualinherited

virtual int lwpp::XPanelInterface::Interface ( int  version, LWInterface *  local, void *  serverdata  )

inlinevirtualinherited

virtual LWError lwpp::Storeable::Load ( const LoadState &  ls )

inlinevirtualinherited

Load data from a LWLoadState.

Parameters:

*ls	LWLoadState to load from

Returns:

An error string if an error occured, 0 otherwise

Reimplemented in lwpp::LWItem, lwpp::FileName, lwpp::Image, lwpp::ColourManager, lwpp::NodeEditor, and lwpp::VParm.

void lwpp::XPanelInterface::LWXPanelBtnClickFunc ( LWXPanelID  panel, int  cid  )

staticinherited

Callback for XPanel button Clicks.

void lwpp::XPanelInterface::LWXPanelChangeNotifyFunc ( LWXPanelID  panel, unsigned int  cid, unsigned int  vid, int  event_type  )

staticinherited

void lwpp::XPanelInterface::LWXPanelControlDrawFunc ( LWXPanelID  panel, unsigned int  cid, LWXPDrAreaID  reg, int  w, int  h  )

staticinherited

void lwpp::XPanelInterface::LWXPanelControlZoomFunc ( LWXPanelID  panel, unsigned int  cid, int  x, int  y, int *  region, int  clickcount  )

staticinherited

void lwpp::XPanelInterface::LWXPanelDestroyNotifyFunc ( void *  data )

staticinherited

void lwpp::XPanelInterface::LWXPanelPopCmdFunc ( LWXPanelID  panel, int  cid, int  cmd  )

staticinherited

virtual LWError lwpp::LightHandler::NewFrame ( const LWFrameInfo *  frameinfo, unsigned int *  maxilluminations, const LWLightAccess *  lightaccess  )

pure virtualinherited

virtual LWError lwpp::RenderHandler::NewTime ( LWFrame  frame, LWTime  time  )

inlinevirtualinherited

virtual void lwpp::XPanelInterface::PanelDestroyNotify ( void  )

inlinevirtualinherited

void lwpp::XPanelInterface::PopCommand ( int  , int    )

inlineinherited

virtual const LWPreviewLight* lwpp::LightHandler::Preview ( )

inlinevirtualinherited

virtual LWError lwpp::Storeable::Save ( const SaveState &  ss )

inlinevirtualinherited

Save data to a LWSaveState.

Parameters:

*ss	LWSaveState to save to

Returns:

An error string if an error occured, 0 otherwise

Reimplemented in lwpp::LWItem, lwpp::FileName, lwpp::Image, lwpp::ColourManager, lwpp::NodeEditor, and lwpp::VParm.

void lwpp::InstanceHandler::SetClassName ( const char *  n )

inlineinherited

void lwpp::InstanceHandler::SetDescription ( const char *  n )

inlineinherited

void lwpp::InstanceHandler::SetDescription ( const std::string &  s )

inlineinherited

void lwpp::InstanceHandler::SetName ( const char *  n )

inlineinherited

void lwpp::InstanceHandler::Update ( )

inlineinherited

void lwpp::InstanceHandler::Update ( const char *  cName )

inlineinherited

virtual const LWItemID* lwpp::ItemHandler::UseItems ( )

inlinevirtualinherited

---

Member Data Documentation

LWItemID lwpp::LightHandler::Context

protectedinherited

LWFrame lwpp::RenderHandler::currentFrame

protectedinherited

LWTime lwpp::RenderHandler::currentTime

protectedinherited

lwpp::LWItemTracker lwpp::ItemHandler::ItemTracker

protectedinherited

XPanel lwpp::XPanelInterface::LW_XPanel

inherited

const char* lwpp::InstanceHandler::m_className

protectedinherited

std::string lwpp::InstanceHandler::m_description

protectedinherited

const char* lwpp::InstanceHandler::m_pluginName

protectedinherited

InstanceUpdate lwpp::InstanceHandler::m_update

protectedinherited

int lwpp::RenderHandler::renderMode

protectedinherited

---

The documentation for this class was generated from the following file:

• light_handler.h
