#include <image.h>

Inheritance diagram for lwpp::Image:

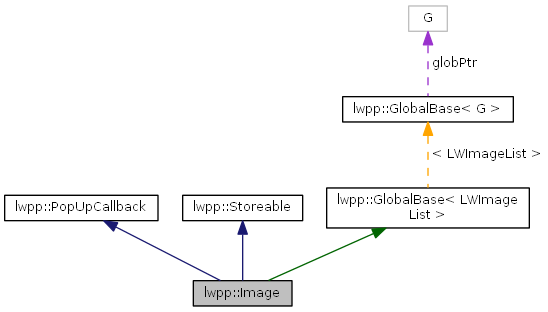

Collaboration diagram for lwpp::Image:

Public Member Functions
	Image (LWImageID _id=0)
LWBufferValue	alpha (int x, int y) const
void	clear (void)
LWPixmapID	evaluate (LWTime t)
const char *	filename (LWFrame frame=0) const
void	first (void)
double	GetAlphaSpot (double x, double y, double spotSize, bool blend)
int	getHeight (void) const
LWImageID	getID () const
int	getImageNum (LWImageID i)
double	GetLumaSpot (double x, double y, double spotSize, bool blend)
LWImageID	getNumImage (int n)
void	GetPopUp (int i)
	Get the value returned from a pop-up.
void	GetRGBSpot (double x, double y, double spotSize, bool blend, double rgb[3])
const char *	GetSelectedName ()
int	getWidth (void) const
bool	hasAlpha (void) const
bool	isColor (void) const
bool	isValid ()
void	load (const char *filename)
virtual LWError	Load (const LoadState &ls)
	Load data from a LWLoadState.
LWBufferValue	luma (int x, int y) const
const char *	name () const
void	needAA ()
void	next (void)
Image &	operator= (const Image &from)
virtual size_t	popCount (void)
	Actual worker function to be supplied by the deriving class.
virtual const char *	popName (int n)
	Actual worker function to be supplied by the deriving class.
bool	replace (const std::string &newFile)
void	RGB (int x, int y, LWBufferValue val[3]) const
virtual LWError	Save (const SaveState &ss)
	Save data to a LWSaveState.
void	SetID (LWImageID _id)
int	SetPopUp ()
	Set the value for a pop-up.
void	size (int &w, int &h) const

Static Public Member Functions
static int	PopCount (void *inst)
	PopCount callback for LightWave.
static const char *	PopName (void *inst, int n)
	PopUpName name callback for LightWave.

Protected Member Functions
bool	_acquireGlobal ()
virtual bool	available () const
	Check if the global is available.
virtual LWImageList *	getGlobal ()
	Get the pointer to the global.
LWImageList *	operator-> ()
	Get the pointer to the global.

Protected Attributes
int	index

Static Protected Attributes
static LWImageList *	globPtr
	Pointer to the global functions.

Detailed Description

Wrapper for LWImageList

Constructor & Destructor Documentation

lwpp::Image::Image ( LWImageID _id = 0 )

inline

Member Function Documentation

bool lwpp::GlobalBase< LWImageList >::_acquireGlobal ( )

inlineprotectedinherited

LWBufferValue lwpp::Image::alpha	(	int	x,
		int	y
	)		const

inline

virtual bool lwpp::GlobalBase< LWImageList >::available ( ) const

inlinevirtualinherited

Check if the global is available.

void lwpp::Image::clear ( void )

inline

LWPixmapID lwpp::Image::evaluate ( LWTime t )

inline

const char* lwpp::Image::filename ( LWFrame frame = 0 ) const

inline

void lwpp::Image::first ( void )

inline

double lwpp::Image::GetAlphaSpot	(	double	x,
		double	y,
		double	spotSize,
		bool	blend
	)

inline

virtual LWImageList * lwpp::GlobalBase< LWImageList >::getGlobal ( )

inlinevirtualinherited

Get the pointer to the global.

int lwpp::Image::getHeight ( void ) const

inline

LWImageID lwpp::Image::getID ( void ) const

inline

int lwpp::Image::getImageNum ( LWImageID i )

double lwpp::Image::GetLumaSpot	(	double	x,
		double	y,
		double	spotSize,
		bool	blend
	)

inline

LWImageID lwpp::Image::getNumImage ( int n )

void lwpp::Image::GetPopUp ( int i )

Get the value returned from a pop-up.

void lwpp::Image::GetRGBSpot	(	double	x,
		double	y,
		double	spotSize,
		bool	blend,
		double	rgb[3]
	)

inline

const char* lwpp::PopUpCallback::GetSelectedName ( )

inlineinherited

int lwpp::Image::getWidth ( void ) const

inline

bool lwpp::Image::hasAlpha ( void ) const

inline

bool lwpp::Image::isColor ( void ) const

inline

bool lwpp::Image::isValid ( )

inline

void lwpp::Image::load ( const char * filename )

inline

virtual LWError lwpp::Image::Load ( const LoadState & ls )

inlinevirtual

Load data from a LWLoadState.

Parameters:

*ls	LWLoadState to load from

Returns:: An error string if an error occured, 0 otherwise

Reimplemented from lwpp::Storeable.

LWBufferValue lwpp::Image::luma	(	int	x,
		int	y
	)		const

inline

const char* lwpp::Image::name ( ) const

inline

void lwpp::Image::needAA ( )

inline

void lwpp::Image::next ( void )

inline

LWImageList * lwpp::GlobalBase< LWImageList >::operator-> ( )

inlineinherited

Get the pointer to the global.

Image& lwpp::Image::operator= ( const Image & from )

inline

static int lwpp::PopUpCallback::PopCount ( void * inst )

inlinestaticinherited

PopCount callback for LightWave.

size_t lwpp::Image::popCount ( void )

virtual

Actual worker function to be supplied by the deriving class.

Returns:: The number of items

Implements lwpp::PopUpCallback.

static const char* lwpp::PopUpCallback::PopName	(	void *	inst,
		int	n
	)

inlinestaticinherited

PopUpName name callback for LightWave.

const char * lwpp::Image::popName ( int n )

virtual

Actual worker function to be supplied by the deriving class.

Parameters:

n	A item index

Returns:: The name of the item

Implements lwpp::PopUpCallback.

bool lwpp::Image::replace ( const std::string & newFile )

inline

void lwpp::Image::RGB	(	int	x,
		int	y,
		LWBufferValue	val[3]
	)		const

inline

virtual LWError lwpp::Image::Save ( const SaveState & ss )

inlinevirtual

Save data to a LWSaveState.

Parameters:

*ss	LWSaveState to save to

Returns:: An error string if an error occured, 0 otherwise

Reimplemented from lwpp::Storeable.

void lwpp::Image::SetID ( LWImageID _id )

inline

int lwpp::Image::SetPopUp ( void )

Set the value for a pop-up.

void lwpp::Image::size	(	int &	w,
		int &	h
	)		const

inline

Member Data Documentation

LWImageList * lwpp::GlobalBase< LWImageList >::globPtr

staticprotectedinherited

Pointer to the global functions.

int lwpp::PopUpCallback::index

protectedinherited

The documentation for this class was generated from the following files:
