#include <nodeeditor.h>

Inheritance diagram for lwpp::NodeEditor:

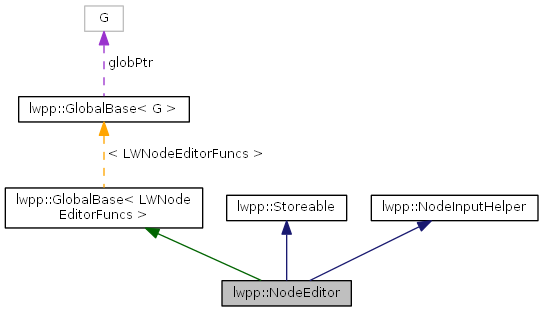

Collaboration diagram for lwpp::NodeEditor:

Public Member Functions
	NodeEditor (NodeEditorID id=0, bool destroy=false)
	NodeEditor (const std::string rootName, const std::string panelTitle, RootNode *rn, NodePreviewType previewType=NPT_RENDER, bool destroy=true)
	~NodeEditor ()
void	cleanup ()
LWError	copy (NodeEditorID from)
bool	create (const std::string rootName, const std::string panelTitle, RootNode *rn, NodePreviewType previewType=NPT_RENDER)
void	destroy ()
NodeEditorID	getId () const
NodeInputID	getInputByIndex (int idx)
NodeInputID	getInputByName (const std::string name)
NodeID	getRootNodeID ()
const unsigned short	getState () const
template<typename T >
T *	getUserData ()
LWError	init (int renderMode)
bool	isOpenNodeEditor ()
virtual LWError	Load (const LoadState &ls)
	Load data from a LWLoadState.
LWError	newTime (LWFrame frame, LWTime time)
const int	numberOfNodes () const
bool	OpenNodeEditor ()
NodeEditor &	operator= (const NodeEditor &from)
void	rename (const std::string newName)
virtual LWError	Save (const SaveState &ss)
	Save data to a LWSaveState.
void	setAutosize (nodeAutoSizeFunc *func)
void	setEnvGroup (LWChanGroupID cId)
void	setState (unsigned short int state)
void	setUpdateFunc (nodeEditorUpdateFunc *func)
void	setUserData (void *data)
Node Inputs
Functions to add node inputs
LWNodeInput *	addColorInput (const std::string name="Color", NodeInputEvent *inp_event=0)
LWNodeInput *	addColourInput (const std::string name="Colour", NodeInputEvent *inp_event=0)
LWNodeInput *	addScalarInput (const std::string name="Scalar", NodeInputEvent *inp_event=0)
LWNodeInput *	addVectorInput (const std::string name="Vector", NodeInputEvent *inp_event=0)
LWNodeInput *	addIntegerInput (const std::string name="Integer", NodeInputEvent *inp_event=0)
LWNodeInput *	addFunctionInput (const std::string name="Function", NodeInputEvent *inp_event=0)
LWNodeInput *	addMaterialInput (const std::string name="Material", NodeInputEvent *inp_event=0)

Protected Member Functions
bool	_acquireGlobal ()
LWNodeInput *	addInput (ConnectionType type, const std::string name, NodeInputEvent *inp_event)
virtual bool	available () const
	Check if the global is available.
virtual LWNodeEditorFuncs *	getGlobal ()
	Get the pointer to the global.
LWNodeEditorFuncs *	operator-> ()
	Get the pointer to the global.

Protected Attributes
bool	do_destroy
NodeEditorID	mId
LWRootNode	mRootNode

Static Protected Attributes
static LWNodeEditorFuncs *	globPtr
	Pointer to the global functions.

Constructor & Destructor Documentation

lwpp::NodeEditor::NodeEditor	(	NodeEditorID	id = `0`,
		bool	destroy = `false`
	)

inline

lwpp::NodeEditor::NodeEditor	(	const std::string	rootName,
		const std::string	panelTitle,
		RootNode *	rn,
		NodePreviewType	previewType = `NPT_RENDER`,
		bool	destroy = `true`
	)

inline

lwpp::NodeEditor::~NodeEditor ( )

inline

Member Function Documentation

bool lwpp::GlobalBase< LWNodeEditorFuncs >::_acquireGlobal ( )

inlineprotectedinherited

LWNodeInput* lwpp::NodeInputHelper::addColorInput	(	const std::string	name = `"Color"`,
		NodeInputEvent *	inp_event = `0`
	)

inlineinherited

LWNodeInput* lwpp::NodeInputHelper::addColourInput	(	const std::string	name = `"Colour"`,
		NodeInputEvent *	inp_event = `0`
	)

inlineinherited

LWNodeInput* lwpp::NodeInputHelper::addFunctionInput	(	const std::string	name = `"Function"`,
		NodeInputEvent *	inp_event = `0`
	)

inlineinherited

LWNodeInput* lwpp::NodeEditor::addInput	(	ConnectionType	type,
		const std::string	name,
		NodeInputEvent *	inp_event
	)

inlineprotectedvirtual

Implements lwpp::NodeInputHelper.

LWNodeInput* lwpp::NodeInputHelper::addIntegerInput	(	const std::string	name = `"Integer"`,
		NodeInputEvent *	inp_event = `0`
	)

inlineinherited

LWNodeInput* lwpp::NodeInputHelper::addMaterialInput	(	const std::string	name = `"Material"`,
		NodeInputEvent *	inp_event = `0`
	)

inlineinherited

LWNodeInput* lwpp::NodeInputHelper::addScalarInput	(	const std::string	name = `"Scalar"`,
		NodeInputEvent *	inp_event = `0`
	)

inlineinherited

LWNodeInput* lwpp::NodeInputHelper::addVectorInput	(	const std::string	name = `"Vector"`,
		NodeInputEvent *	inp_event = `0`
	)

inlineinherited

virtual bool lwpp::GlobalBase< LWNodeEditorFuncs >::available ( ) const

inlinevirtualinherited

Check if the global is available.

void lwpp::NodeEditor::cleanup ( )

inline

LWError lwpp::NodeEditor::copy ( NodeEditorID from )

inline

bool lwpp::NodeEditor::create	(	const std::string	rootName,
		const std::string	panelTitle,
		RootNode *	rn,
		NodePreviewType	previewType = `NPT_RENDER`
	)

void lwpp::NodeEditor::destroy ( )

inline

virtual LWNodeEditorFuncs * lwpp::GlobalBase< LWNodeEditorFuncs >::getGlobal ( )

inlinevirtualinherited

Get the pointer to the global.

NodeEditorID lwpp::NodeEditor::getId ( ) const

inline

NodeInputID lwpp::NodeEditor::getInputByIndex ( int idx )

inline

NodeInputID lwpp::NodeEditor::getInputByName ( const std::string name )

inline

NodeID lwpp::NodeEditor::getRootNodeID ( )

inline

const unsigned short lwpp::NodeEditor::getState ( void ) const

inline

template<typename T >

T* lwpp::NodeEditor::getUserData ( )

inline

LWError lwpp::NodeEditor::init ( int renderMode )

inline

bool lwpp::NodeEditor::isOpenNodeEditor ( )

inline

virtual LWError lwpp::NodeEditor::Load ( const LoadState & ls )

inlinevirtual

Load data from a LWLoadState.

Parameters:

*ls	LWLoadState to load from

Returns:: An error string if an error occured, 0 otherwise

Reimplemented from lwpp::Storeable.

LWError lwpp::NodeEditor::newTime	(	LWFrame	frame,
		LWTime	time
	)

inline

const int lwpp::NodeEditor::numberOfNodes ( ) const

inline

bool lwpp::NodeEditor::OpenNodeEditor ( )

inline

LWNodeEditorFuncs * lwpp::GlobalBase< LWNodeEditorFuncs >::operator-> ( )

inlineinherited

Get the pointer to the global.

NodeEditor& lwpp::NodeEditor::operator= ( const NodeEditor & from )

inline

void lwpp::NodeEditor::rename ( const std::string newName )

inline

virtual LWError lwpp::NodeEditor::Save ( const SaveState & ss )

inlinevirtual

Save data to a LWSaveState.

Parameters:

*ss	LWSaveState to save to

Returns:: An error string if an error occured, 0 otherwise

Reimplemented from lwpp::Storeable.

void lwpp::NodeEditor::setAutosize ( nodeAutoSizeFunc * func )

inline

void lwpp::NodeEditor::setEnvGroup ( LWChanGroupID cId )

inline

void lwpp::NodeEditor::setState ( unsigned short int state )

inline

void lwpp::NodeEditor::setUpdateFunc ( nodeEditorUpdateFunc * func )

inline

void lwpp::NodeEditor::setUserData ( void * data )

inline

Member Data Documentation

bool lwpp::NodeEditor::do_destroy

protected

LWNodeEditorFuncs * lwpp::GlobalBase< LWNodeEditorFuncs >::globPtr

staticprotectedinherited

Pointer to the global functions.

NodeEditorID lwpp::NodeEditor::mId

protected

LWRootNode lwpp::NodeEditor::mRootNode

protected

The documentation for this class was generated from the following files:
