Base class for Layout Tool plugins. More...

#include <layouttool_handler.h>

Inheritance diagram for lwpp::LayoutToolHandler:

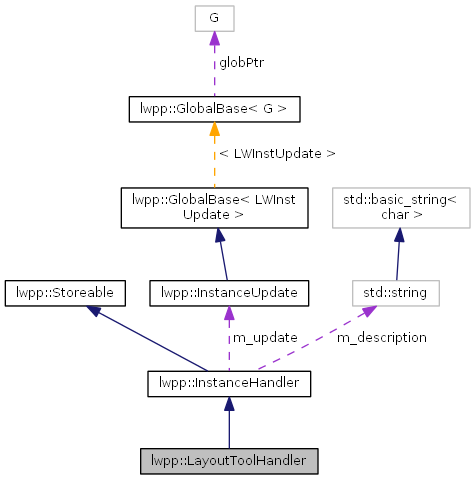

Collaboration diagram for lwpp::LayoutToolHandler:

Public Member Functions
	LayoutToolHandler (void g, void context, LWError *err)
	Constructor.
virtual	~LayoutToolHandler ()
	Destructor.
virtual int	adjust (LWToolEvent *lwtool_event, int i)
	Drag the given handle to a new location.
virtual int	count (LWToolEvent *lwtool_event)
	Returns the number of handles. If zero, then start is used to set the initial handle point.
virtual const char *	DescLn ()
virtual int	dirty ()
	Returns flag bit if either the wireframe or help string need to be refreshed.
virtual void	done ()
	Destroy the instance. Called when the user discards the tool.
int	down (LWToolEvent *lwtool_event)
	Process a mouse-down event. If this function returns false, handle processing will be done.
virtual void	draw (LWCustomObjAccess *co_access)
	Display a wireframe representation of the tool in a 3D viewport. Typically this draws the handles.
virtual void	event (int code)
	Process a general event: DROP, RESET or ACTIVATE.
int	handle (LWToolEvent *lwtool_event, int i, LWDVector handle_pos)
	Returns the 3D location and priority of the handle, or zero if the handle is currently invalid.
virtual const char *	help (LWToolEvent *lwtool_event)
	Returns a text string to be displayed as a help tip for this tool.
virtual LWError	Load (const LoadState &ls)
	Load data from a LWLoadState.
virtual void	move (LWToolEvent *lwtool_event)
	Process a mouse-move event. This is only called if the down function returned true.
virtual LWXPanelID	panel ()
	Create and return a view-type xPanel for the tool instance.
virtual LWError	Save (const SaveState &ss)
	Save data to a LWSaveState.
void	SetClassName (const char *n)
void	SetDescription (const char *n)
void	SetDescription (const std::string &s)
void	SetName (const char *n)
int	start (LWToolEvent *lwtool_event)
	Take an initial mouse-down position and return the index of the handle that should be dragged.
void	up (LWToolEvent *lwtool_event)
	Process a mouse-up event. This is only called if the down function returned true.
void	Update ()
void	Update (const char *cName)

Protected Attributes
const char *	m_className
std::string	m_description
const char *	m_pluginName
InstanceUpdate	m_update

Detailed Description

Base class for Layout Tool plugins.

Note:: Work in progress

Constructor & Destructor Documentation

lwpp::LayoutToolHandler::LayoutToolHandler	(	void *	g,
		void *	context,
		LWError *	err
	)

inline

Constructor.

virtual lwpp::LayoutToolHandler::~LayoutToolHandler ( )

inlinevirtual

Destructor.

Member Function Documentation

virtual int lwpp::LayoutToolHandler::adjust	(	LWToolEvent *	lwtool_event,
		int	i
	)

inlinevirtual

Drag the given handle to a new location.

Drag the given handle to a new location and return the index of the handle that should continue being dragged (often the same as the input).

Parameters:

lwtool_event	The event to the handle.
i	The number of the handle

Returns:: the index of the handle that should continue being dragged (often the same as the input)

virtual int lwpp::LayoutToolHandler::count ( LWToolEvent * lwtool_event )

inlinevirtual

Returns the number of handles. If zero, then start is used to set the initial handle point.

Parameters:

lwtool_event The event to the handle.

virtual const char* lwpp::InstanceHandler::DescLn ( )

inlinevirtualinherited

virtual int lwpp::LayoutToolHandler::dirty ( )

inlinevirtual

Returns flag bit if either the wireframe or help string need to be refreshed.

virtual void lwpp::LayoutToolHandler::done ( )

inlinevirtual

Destroy the instance. Called when the user discards the tool.

int lwpp::LayoutToolHandler::down ( LWToolEvent * lwtool_event )

inline

Process a mouse-down event. If this function returns false, handle processing will be done.

If this function returns false, handle processing will be done instead of raw mouse event processing.

Parameters:

lwtool_event The event to the handle.

Returns:: false if handle processing will be done instead of raw mouse event processing

virtual void lwpp::LayoutToolHandler::draw ( LWCustomObjAccess * co_access )

inlinevirtual

Display a wireframe representation of the tool in a 3D viewport. Typically this draws the handles.

Parameters:

co_access A custom object structure access

virtual void lwpp::LayoutToolHandler::event ( int code )

inlinevirtual

Process a general event: DROP, RESET or ACTIVATE.

int lwpp::LayoutToolHandler::handle	(	LWToolEvent *	lwtool_event,
		int	i,
		LWDVector	handle_pos
	)

inline

Returns the 3D location and priority of the handle, or zero if the handle is currently invalid.

Parameters:

lwtool_event	The event to the handle.
i	The number of the handle
handle_pos	The 3D location of the handle.

virtual const char* lwpp::LayoutToolHandler::help ( LWToolEvent * lwtool_event )

inlinevirtual

Returns a text string to be displayed as a help tip for this tool.

Parameters:

lwtool_event The event to show the help string for.

virtual LWError lwpp::Storeable::Load ( const LoadState & ls )

inlinevirtualinherited

Load data from a LWLoadState.

Parameters:

*ls	LWLoadState to load from

Returns:: An error string if an error occured, 0 otherwise

Reimplemented in lwpp::LWItem, lwpp::FileName, lwpp::Image, lwpp::ColourManager, lwpp::NodeEditor, and lwpp::VParm.

virtual void lwpp::LayoutToolHandler::move ( LWToolEvent * lwtool_event )

inlinevirtual

Process a mouse-move event. This is only called if the down function returned true.

virtual LWXPanelID lwpp::LayoutToolHandler::panel ( )

inlinevirtual

Create and return a view-type xPanel for the tool instance.

virtual LWError lwpp::Storeable::Save ( const SaveState & ss )

inlinevirtualinherited

Save data to a LWSaveState.

Parameters:

*ss	LWSaveState to save to

Returns:: An error string if an error occured, 0 otherwise

Reimplemented in lwpp::LWItem, lwpp::FileName, lwpp::Image, lwpp::ColourManager, lwpp::NodeEditor, and lwpp::VParm.

void lwpp::InstanceHandler::SetClassName ( const char * n )

inlineinherited

void lwpp::InstanceHandler::SetDescription ( const char * n )

inlineinherited

void lwpp::InstanceHandler::SetDescription ( const std::string & s )

inlineinherited

void lwpp::InstanceHandler::SetName ( const char * n )

inlineinherited

int lwpp::LayoutToolHandler::start ( LWToolEvent * lwtool_event )

inline

Take an initial mouse-down position and return the index of the handle that should be dragged.

Parameters:

lwtool_event The event to the handle.

void lwpp::LayoutToolHandler::up ( LWToolEvent * lwtool_event )

inline

Process a mouse-up event. This is only called if the down function returned true.

void lwpp::InstanceHandler::Update ( )

inlineinherited

void lwpp::InstanceHandler::Update ( const char * cName )

inlineinherited

Member Data Documentation

const char* lwpp::InstanceHandler::m_className

protectedinherited

std::string lwpp::InstanceHandler::m_description

protectedinherited

const char* lwpp::InstanceHandler::m_pluginName

protectedinherited

InstanceUpdate lwpp::InstanceHandler::m_update

protectedinherited

The documentation for this class was generated from the following file:

layouttool_handler.h
